Product Details
Place of Origin: China
Brand Name: xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5
Payment & Shipping Terms
Minimum Order Quantity: 1set system
Price: negotiation
Packaging Details: Plywood case,Paper carton
Delivery Time: 10-15 working days after payment or receipt of L/C
Payment Terms: L/C, T/T, D/P, Western Union,Paypal,Credit Card,Debit Card
Supply Ability: 300 sets per month
Spraying Time: |
≤10s |
Actuation: |
Automatic Or Manual |
Pattern Of Extinguishing: |
Enclosed Flooding |
Printed Color: |
Silver(cabinet), Red(cylinder) |
Working Pressure: |
2.5MPa |
Capacity Of Gas: |
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg |
Spraying Time: |
≤10s |
Actuation: |
Automatic Or Manual |
Pattern Of Extinguishing: |
Enclosed Flooding |
Printed Color: |
Silver(cabinet), Red(cylinder) |
Working Pressure: |
2.5MPa |
Capacity Of Gas: |
38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg |

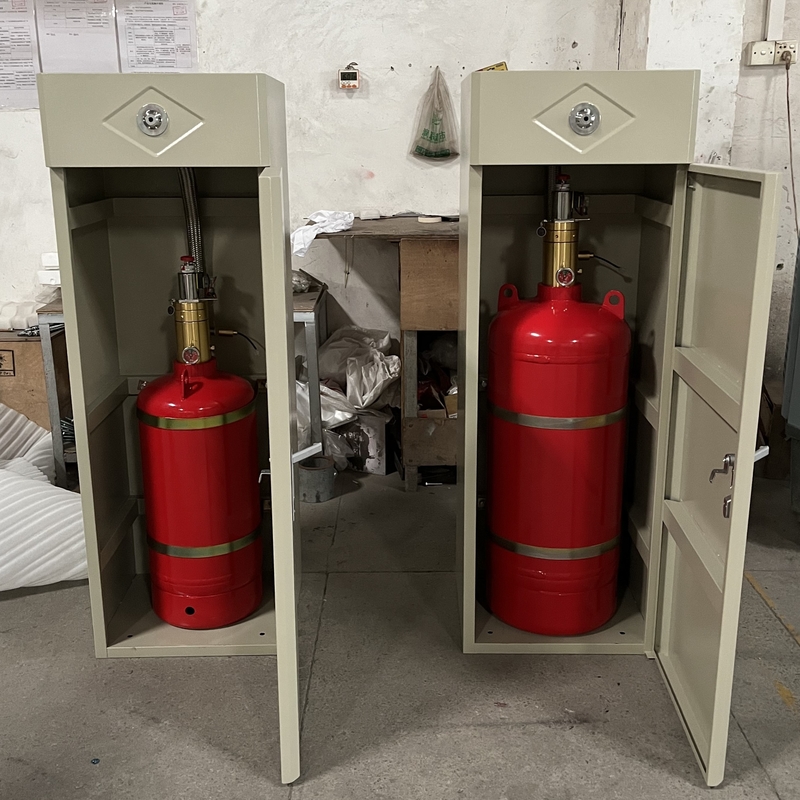

100L FM200 Cabinet Extinguisher Single Cylinder with Two Nozzles
Description:
swiftness, efficiency, and tenacity in extinguishing the fire.
In less than 10 seconds, the FM200 pure gas automatic fire extinguishing system can completely put out a fire. Clean gas fire extinguishing agent FM200 normally has a low concentration, only 9%, when measured according to reserve design fire extinguishing concentration. The FM200 clean fire extinguishing agent is a liquid that can be stored and is immediately transformed into a gas that is highly driven to put out fires.
The FM200 clean gas automated fire extinguishing system is perfect for safeguarding documents, high-value equipment, electrical and magnetic media, as well as collections and documents. The protected things are not harmed, do not leave a residue after a fire, and do not obstruct the protected regions' normal operations.
Compositions:
An extinguishing mechanism and electrical components make up the entirety of a one-set system (the composition is shown in the illustration below).
One set of the cabinet type FM200 fire suppression equipment consists of FM200 agents, an FM200 cylinder, a hoop, a cabinet, a container valve, a solenoid actuator, a flexible hose (high pressure hose), nozzle(s), and pressure switch.
Applications:
A clean room, anechoic chamber, emergency power facilities, flammable liquid storage space, a data processing center, telecommunications facilities, process control, pricey medical equipment, industrial equipment, a library, a museum, and an art gallery, among other things.
The areas where fires are more likely to occur, such as the engine room, cargo hold, rolling mills, printing presses, oil switches, oil-immersed transformers, and production lines spraying paint, among other places.
Parameter:
| NO. | Specifications | Parameters |
| 1 | Cylinder capacity | 40Ltr,70Ltr,90Ltr,100Ltr, 120Ltr,150Ltr,180Ltr |
| 2 | Device model | GQQ40/2.5, GQQ70/2.5, GQQ90/2.5, GQQ100/2.5, GQQ120/2.5, GQQ150/2.5, GQQ180/2.5 |
| 3 | Filling pressure | 2.5MPa |
| 4 | Max filling rate | 0.95kg/L |
| 5 | Discharge time | ≤10s |
| 6 | Working temperature | 0℃~50℃ |
| 7 | Max working pressure | 4.2MPa |
| 8 | Discharge pressure | 5.6±0.28MPa |
| 9 | Proportion of protected zone | ≤500m² |
| 10 | Volume of protected zone | ≤1600m³ |
| 11 | Actuation | Automatic or manual start |
Competitive Advantage:
There are several benefits to using a cabinet fire suppression system, and the following is a brief explanation of some of them:
1. Quick reaction. Fm200 gas can be released directly into the protection zone because there is no need for long-distance pipe transmission. Its spraying cycle lasts less than 8 seconds. Therefore, when the fire occurs, it will take less time overall.
2. Easy installation. Comparatively speaking, installing a cabinet system would be easier than a pipe network system. The only remaining task after installing control panels and electrical components is connecting it to one or more cabinet fire extinguishing systems. But due to the control panel's output current limitation, no more than 4 pieces of it should be placed in a single room.
3. Lower price. For the protective zone that only requires a single cylinder, the cost would undoubtedly be lower than for a pipe network type because there would be no need to factor in the cost of pipes, pipe fittings, or labor for this component.
