Guangzhou Xingjin Fire Equipment Co.,Ltd. info@xingjin-fire.com 86--18011936582
Product Details
Place of Origin: Guangdong
Brand Name: Xingjin
Certification: CAL,CMA,CNAS,ILAC-MRA,CCC
Model Number: QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 10-15 days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 20000 sets per month
Filling Pressure: |
5.6/4.2 MPa |
Discharge Time: |
≤10s |
Filling Density: |
≤1250kg/m³ |
Drive Device Pressure: |
6.0Mpa(20℃) |
Pressure Of Adding Pressure Cylinder: |
13.5Mpa |
Ambient Temperature: |
0~50℃ |
Cylinder Volume: |
90Ltr |
Power: |
DC24V/1A |
Filling Pressure: |
5.6/4.2 MPa |
Discharge Time: |
≤10s |
Filling Density: |
≤1250kg/m³ |
Drive Device Pressure: |
6.0Mpa(20℃) |
Pressure Of Adding Pressure Cylinder: |
13.5Mpa |
Ambient Temperature: |
0~50℃ |
Cylinder Volume: |
90Ltr |
Power: |
DC24V/1A |
Guangzhou manufacturers piston flow fm200 system
FM200 Piston Flow System Extinguishing System Alarm System With Low Maintenance For Fire Detection
Description:
Fm200(hfc-227ea) is a kind of clean gas extinguishing agent with chemical extinguishing and physical extinguishing.It is colorless, tasteless, low toxicity, non-conductive, does not pollute the protected object.
The piston flow type heptafluoropropane fire suppression system, which is produced by our company, absorb the advanced technology of gas fire extinguishing research at home and abroad. It is high strength safety factor, strong work reliability, convenient operating and maintenance. At the same time, the system has automatic and manual driving mode. It relies on external driving force to push the agent farther in the effective fire-fighting time.
The Piston Flow FM200 system is a patented fire protection system developed by FirePro Systems, an industry-leading manufacturer of fire suppression systems. This system is designed to provide fast and effective fire suppression in enclosed spaces like engine rooms, electrical panels, and computer rooms in marine and other industrial environments.
The Piston Flow FM200 system uses a patented piston dispensing technology to release the FM200 agent into the protected area quickly and efficiently. The FM200 is stored in cylinders under high pressure and is released by the piston pumping mechanism through a distribution valve and into the piping network quickly when activated.
The system is available in both manual and automatic activation modes, making it suitable for a wide range of applications. The system can be activated by an electronic control panel in automatic mode or through a manual trigger. The FM200 gas is distributed through a network of piping and nozzles to extinguish the fire rapidly and efficiently.
One of the main advantages of the Piston Flow FM200 system is its ability to provide reliable and efficient fire suppression with minimal damage to equipment and materials. The system requires little maintenance and does not leave any harmful residue or byproducts after discharge, making cleanup unnecessary.
FirePro Systems is a leading manufacturer of fire suppression systems and provides product support, training, and installation services for the Piston Flow FM200 system. The system meets various regulatory standards, including UL, FM, LPCB, and CE, making it a reliable and safe solution for fire protection in industrial and commercial applications.
| No. | Name | Specification |
| 1 | Device Model | QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ |
| 2 | Cylinder Volume | 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr |
| 3 | Filling Capacity of Gas | 112.5kg, 150kg, 187.5kg, 225kg, 306.25kg |
| 4 | Max Working Pressure | 8Mpa, 5.3Mpa |
| 5 | Max protected area | Single zone: 800m2 |
| 6 | Max protected volume | Single zone: 3600m3 |
| 7 | Spraying Time | ≤10s |
| 8 | Agent Filling Density | ≤1250kg/m3 |
| 9 | Power | DC24V/1A |
| 10 | Pressure of Adding Pressure Cylinder | 13.5Mpa |
| 11 | Pressure of Driving Device | 6.0Mpa(20℃) |
| 12 | Condition of Reserving Room for Container | temperature: 0~50℃ |
System Composition
-----------------------------------------------------------------------------------

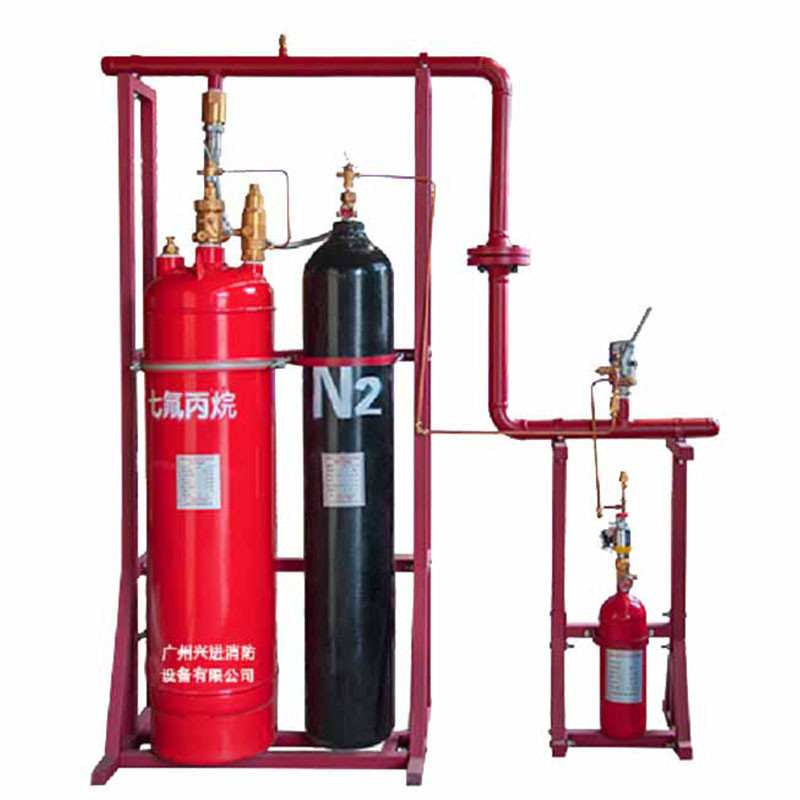

This system mainly consists of agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relief device, level gauge, relief valve, pipe system, which can constitute the unit independent system. Combined distribution system and other forms can implement fire protection for single and multiple zones.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Competitive Advantage:
Proven Technology
Clean, leaves behind no residue
Safe for discharge into occupied spaces
Cost effective engineered system, providing maximum protection
Sustainable technology providing an environmentally-conscientious solution
Application:
Data centres
Server rooms
Comms rooms
Electrical distribution rooms
Control rooms
Museums & archives
Laboratories
Anechoic chambers
Marine vessels
Medical records storage
Military
Power generation & power storage
Telecommunications
Transportation
Paint storage
Battery rooms
Large manufacturing complexes
Multi level sites
Clean rooms
Packages
We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher
(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
Why Choose Us
-----------------------------------------------------------------------------------
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite Satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
-----------------------------------------------------------------------------------
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
FAQ
-----------------------------------------------------------------------------------
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
