Product Details
Place of Origin: China
Brand Name: Xingjin
Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE
Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N
Payment & Shipping Terms
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: Plywood case, carton or as requirement
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
Type: |
Automatic Fire Suppression Tube |
Agent: |
Hfc227ea / Novec1230(FK-5-1-12) |
Color: |
White |
Length: |
2000mm, 3000mm, 4000mm, 5000mm |
Diameter Of The Tube: |
18mm |
Coverage: |
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter |
Amount Of Agent: |
500g±5g; 750g±5g; 1000g±10g; 1250g±10g |
Blasting Temperature: |
110℃±10℃ |
Type: |
Automatic Fire Suppression Tube |
Agent: |
Hfc227ea / Novec1230(FK-5-1-12) |
Color: |
White |
Length: |
2000mm, 3000mm, 4000mm, 5000mm |
Diameter Of The Tube: |
18mm |
Coverage: |
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter |
Amount Of Agent: |
500g±5g; 750g±5g; 1000g±10g; 1250g±10g |
Blasting Temperature: |
110℃±10℃ |

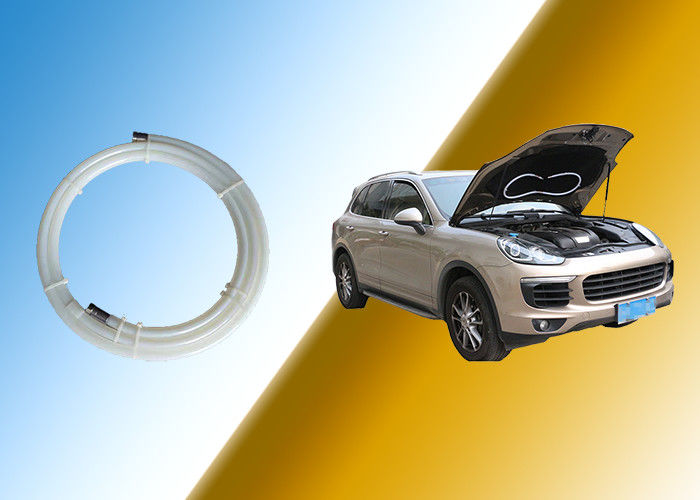

Novec1230/FM200 Tube Fire Suppression System
Novec1230/FM200 Tube Fire Suppression System
Introduction:
Ideal for cars, 4WDs, boats, outboard motors, tractors
There are no service or maintenance required for 5 years
HFC-227ea non-toxic and environmentally friendly
Suitable for any fires – Class A B C D E Portable and lightweight.
Can also be used to put out any electrical fire
Technical Specification:
| Model | Type of agent | Amount of agent(g) | Length of tube(cm) | Diameter of tube(mm) | Approximate maximum coverage (cubic meter) | Working temperature(℃) | Blasting temperature(℃) |
| XJ200H/N | Hfc-227ea/ Novec 1230 | 500±5 | 200 | 18 | 0.5 | From -40 to 80 | 110±10 |
| XJ300H/N | 750±10 | 300 | 18 | 0.75 | From -40 to 80 | 110±10 | |
| XJ400H/N | 1000±10 | 400 | 18 | 1 | From -40 to 80 | 110±10 | |
| XJ500H/N | 1250±10 | 500 | 18 | 1.25 | From -40 to 80 | 110±10 |
Features:
1.Blasting Temperature:110℃±10℃;
2.Fire Agent: Clean agent, FM200/FK-5-1-12 (Novec1230). They are very friendly to human beings and the environment.
3.Easy to clean or don't have to clean it up. Because the fire agent is gas.
4.Without any waste materials after using.
5.Easy to install and use.
6.Normally, the length of our tubes are 200cm, 300cm. But the length can be changed according to your request.
Application:
The Tube Type Automatic Fire Systems are used to protect the relatively enclosed space, including but not limited to:
1) Engine Compartments of Boats and Yachts.
2) Engine Compartments of All On-Road Vehicles and Off-Road Vehicles: Car, Van, Bus, Mini Bus, Truck, Rally Car, Mining Machine or Construction Machine, etc.
3)Electric Panel, Switch Board, Sever Panel, .Control Box, etc.
Application:
Automatic fire suppression tube (tube fire suppression systems) can be used to protect enclosed engine areas, such as cars, sever rooms, light boxes. switchboards is also used in power plants, substations, gas industry, banks, private households, industrial complexes and everywhere where there is a risk of fire.
FAQ
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located? Can I visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Yes, we always welcome and wait for your visit.
