Product Details
Place of Origin: China
Brand Name: Xingjin
Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE
Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N
Payment & Shipping Terms
Minimum Order Quantity: 50 set system
Price: negotiation
Packaging Details: Plywood outer box with bubble bag or paper
Delivery Time: 15-20 working days after payment or receipt of L/C
Payment Terms: T/T, L/C
Supply Ability: 30000 set system
Type: |
Automatic Fire Suppression Tube |
Agent: |
Hfc227ea / Novec1230 |
Color: |
White |
Length: |
200cm, 300cm, 400cm, 500cm |
Diameter Of The Tube: |
18mm |
Coverage: |
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter |
Amount Of Agent: |
500g±5g; 750g±5g; 1000g±10g; 1250g±10g |
Blasting Temperature: |
110℃±10℃ |
Type: |
Automatic Fire Suppression Tube |
Agent: |
Hfc227ea / Novec1230 |
Color: |
White |
Length: |
200cm, 300cm, 400cm, 500cm |
Diameter Of The Tube: |
18mm |
Coverage: |
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter |
Amount Of Agent: |
500g±5g; 750g±5g; 1000g±10g; 1250g±10g |
Blasting Temperature: |
110℃±10℃ |

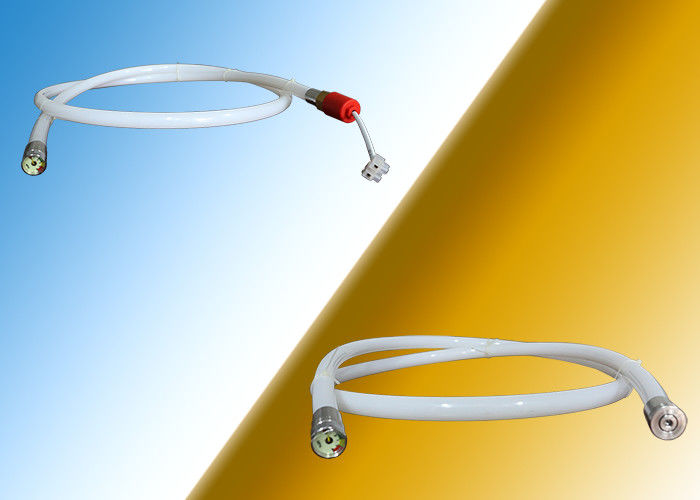

Novec1230 Hfc227ea White Fire Suppression Tube Automatic Cover 0.5 Cubic Meter
Automatic fire suppression tube for car engine
Technical Specification:
| Model | Type of agent | Amount of agent(g) | Length of tube(cm) | Diameter of tube(mm) |
Approximate maximum coverage (cubic meter) |
Working temperature(℃) | Blasting temperature(℃) |
| XJ200H/N | Hfc-227ea/ Novec 1230 |
500±5 | 200 | 18 | 0.5 | From -40 to 80 | 110±10 |
| XJ300H/N | 750±5 | 300 | 18 | 0.75 | From -40 to 80 | 110±10 | |
| XJ400H/N | 1000±10 | 400 | 18 | 1 | From -40 to 80 | 110±10 | |
| XJ500H/N | 1250±10 | 500 | 18 | 1.25 | From -40 to 80 | 110±10 |
Application:
The relatively confined space is protected by the Tube Type Automatic Fire Systems, including but not limited to:
1) Boat and yacht engine compartments.
2) Engine spaces in all on- and off-road vehicles, including cars, vans, buses, minibuses, trucks, rally cars, mining or construction equipment, etc.
3) Control boxes, switch boards, server panels, and electric panels.
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., a company that plays a significant role in communication between China and the rest of the globe, is situated in this city and is surrounded by excellent transportation and a lovely environment. We are a manufacturer, and we focus on the research and development of HFC-227ea (FM200) products with the help of our experienced and qualified staff, which includes the program design team, the skilled installation team, the quality detecting team, and the after-sale service team. These days, many of our well-known FM200 products are in use, including the automated FM200 fire extinguisher (ceiling mounted style), the cabinet type FM200 fire suppression system, the pipe network FM200 fire suppression system, the fire detecting tube suppression system, and the automatic fire suppression tube. Our business is well-liked by the clients in China as a consequence of the high-quality goods and services we provide, as well as our solid reputation.
FAQ
1) Where can you use this Tube Automatic Fire Suppression System?
Vehicle's engine room, electrical panel, server room, electrical control cabinet, etc.
2) Are your company a manufacturer or trading company?
---We are a professional Manufacturer of automatic fire suppression systems and fire extinguishers. We have our own factory to produce the fire fighting equipments.
3) Can you print our logo on products?
---Yes, no problem.We also support OEM.
