Product Details
Place of Origin: China
Brand Name: Xingjin
Certification: CAL, CMA, CNAS, ILAC-MRA, CCC, CE
Model Number: XJ200H/N, XJ300H/N, XJ400H/N, XJ500H/N
Payment & Shipping Terms
Minimum Order Quantity: 100 sets
Price: negotiation
Packaging Details: Plywood case, carton or as requirement
Delivery Time: 10-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal, Credit card
Supply Ability: 3000 sets per month
Type: |
Automatic Fire Extinguisher For Electrical Cabinet |
Agent: |
Hfc227ea / Novec1230 |
Color: |
White |
Length: |
2000mm, 3000mm, 4000mm, 5000mm |
Diameter Of The Tube: |
18mm |
Coverage: |
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter |
Amount Of Agent: |
500g±5g; 750g±5g; 1000g±10g; 1250g±10g |
Blasting Temperature: |
110℃±10℃ |
Type: |
Automatic Fire Extinguisher For Electrical Cabinet |
Agent: |
Hfc227ea / Novec1230 |
Color: |
White |
Length: |
2000mm, 3000mm, 4000mm, 5000mm |
Diameter Of The Tube: |
18mm |
Coverage: |
0.5 Cubic Meter; 0.75 Cubic Meter; 1 Cubic Meter; 1.25 Cubic Meter |
Amount Of Agent: |
500g±5g; 750g±5g; 1000g±10g; 1250g±10g |
Blasting Temperature: |
110℃±10℃ |

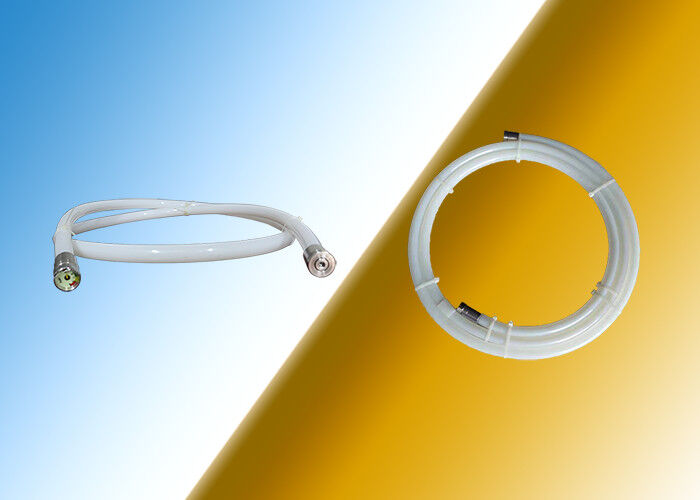

Tube Fire Suppression System For Electrical Cabinet
Automatic fire suppression tube for electrical cabinet
Description:
Designed to automatically suppress fires in small enclosed areas. During a fire, the heat degrades will continue to rise and it will melt the storage tube which contains the extinguishing agent under pressure. The sensitive tube is made of special plastic with stainless fittings on either end. When meet the fire, the tube will be melted, then it will form a hole as a “nozzle”, allowing the extinguishing agent to put out the fire. The storage tube is filled with FM200/HFC-227ea or Novec1230 as extinguishing agent, both of them are extremely effective, clean and people-safe extinguishing medium. It is suitable for class A, B, C, D and E of fires. Ideal for electric cupboards, data cupboards, switchboards, etc. It can be installed by anyone and thus no training is required for installation. The extinguishing agent discharges as a liquid, disperses in the form of a gas and leaves no residue after extinguishing. There are no clean-up costs. The agent does not conduct electricity, corrode or cause thermal shock damage.
Technical Specification:
| Model | Type of agent | Amount of agent(g) | Length of tube(cm) | Diameter of tube(mm) |
Approximate maximum coverage (cubic meter) |
Working temperature(℃) | Blasting temperature(℃) |
| XJ200H/N | Hfc-227ea/ Novec 1230 |
500±5 | 200 | 18 | 0.5 | From -40 to 80 | 110±10 |
| XJ300H/N | 750±5 | 300 | 18 | 0.75 | From -40 to 80 | 110±10 | |
| XJ400H/N | 1000±10 | 400 | 18 | 1 | From -40 to 80 | 110±10 | |
| XJ500H/N | 1250±10 | 500 | 18 | 1.25 | From -40 to 80 | 110±10 |
Application:
Automatic fire suppression tube (tube fire suppression systems) can be used to protect enclosed engine areas, such as cars, sever rooms, light boxes. switchboards is also used in power plants, substations, gas industry, banks, private households, industrial complexes and everywhere where there is a risk of fire.
FAQ
1)Where can you use this Tube Automatic Fire Suppression System?
Vehicle's engine room, electrical panel, server room, electrical control cabinet, etc.
2)Are your company a manufacturer or trading company?
---We are a professional Manufacturer of automatic fire suppression systems and fire extinguishers. We have our own factory to produce the fire fighting equipments.
3)Can you print our logo on products?
---Yes, no problem.We also support OEM.
4)How long does it take to finish the goods?
--- Depend on order quantity, it will take about in 10-15 working days.
5)What's your MOQ?
---Our MOQ is 100 pcs.
